Teflon double-sided tape
浏览次数：144次
- Glass cloth fiber series
详细说明
Teflon double-sided tape

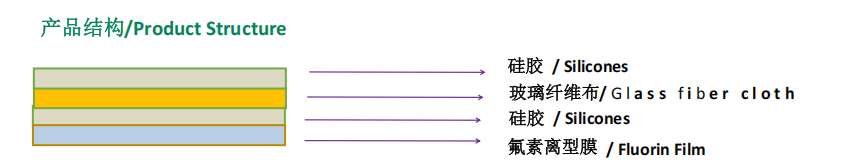

Double-sided Teflon tape is an adhesive tape made of glass cloth as the substrate and coated with
high-performance silicone rubber on both sides. It primarily consists of the substrate, adhesive,
and release layer.
| model | B815 | B818 | B823 | B825 | customizable |
| total thickness um | 150 | 180 | 230 | 250 | customizable |
| substrate thickness um | 90 | 100 | 130 | 150 | customizable |
Thickness of glue applied on side A/ um stickiness N/25MM | 30um 12N | 30um 11N | 50um 12N | 50um 12N | customizable |
Thickness of glue applied on side B / um stickiness N/25MM | 30um 11N | 50um 12 | 50um 12N | 50UM 3-6N | customizable |
| heat-resistant（℃/30min） | 230 | 260 | 260 | 260 | customizable |
| pressure resistance/KV | 3 | 3 | 3 | 3 | |
| length/M | 20 | 20 | 20 | 20 | customizable |
