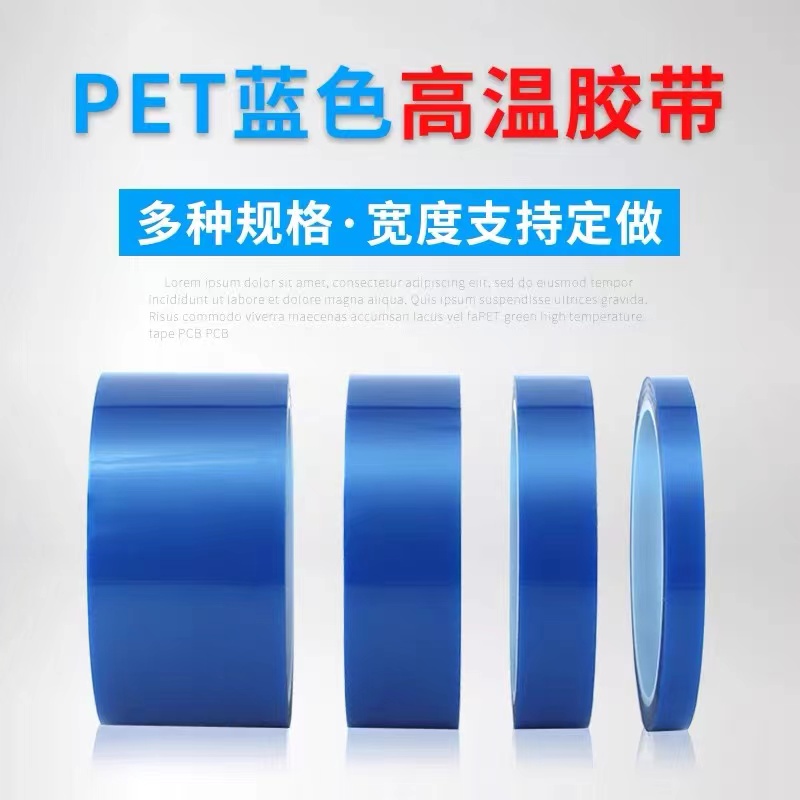

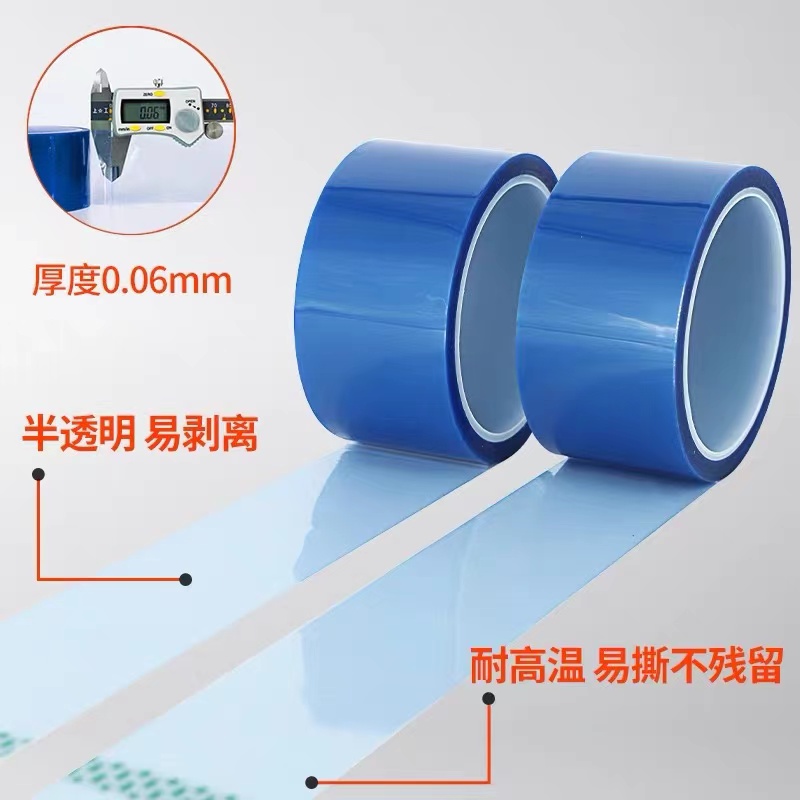

Blue PET high-temperature resistant tape (silicone)
- PET silicone tape
Blue PET high-temperature resistant tape (silicone)
Product description: This tape is made of soft polyester film as the substrate, with one side coated with high-performance
silicone pressure-sensitive adhesive. It exhibits excellent high-temperature resistance, no residue, and solvent resistance!
This product can be laminated with fluorine-based release film and cut to the width required by customers. The model number
is followed by an F
| model | T2535 | T2540 | T2550 | T3850 | T3855 | T3860 | T5060 | T5070 | T5080 | T50100 | T75100 | customizable |
| substrate thickness | 25um | 25um | 25um | 38um | 38um | 38um | 50um | 50um | 50um | 50um | 75um | customizable |
| total thickness | 35um | 40um | 50um | 50um | 55um | 60um | 60um | 70um | 80um | 100um | 100um | |
stickiness N/25mm | 5-7 | 6-8 | 7-10 | 6-8 | 8-10 | 8-10 | 5-7 | 7-10 | 9-11 | 10-13 | 9-11 | |
| tensile strength | 120 | 120 | 120 | 130 | 130 | 130 | 140 | 140 | 140 | 140 | 160 | |
| Elongation at break | 55 | 55 | 55 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | |
| Withstand Voltage/KV | 1.5 | 1.5 | 1.5 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 5 | |
| heat-resistant℃/30min | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
Product Features:
High temperature resistance, high adhesion, soft and conformable, and no residue left after removal.
Application fields:
Motor insulation, powder coating, ultra-high temperature baking paint, electroplating and other industries.
Storage conditions and expiration date:
The product should be stored at room temperature, within an environment with a temperature range of 20℃ to 80%RH.
Good performance can be achieved if the product is used within 3 months after the production date.
Notes:
The above technical data are average values obtained through multiple tests conducted by our company using recognized and reliable testing
methods. However, for
To ensure the correct selection and use of our company's products, please first carefully consider the intended purpose and conditions of use
based on the intended recipient
Please fully understand and try it, or notify our company so that we can provide you with further explanations and services.
